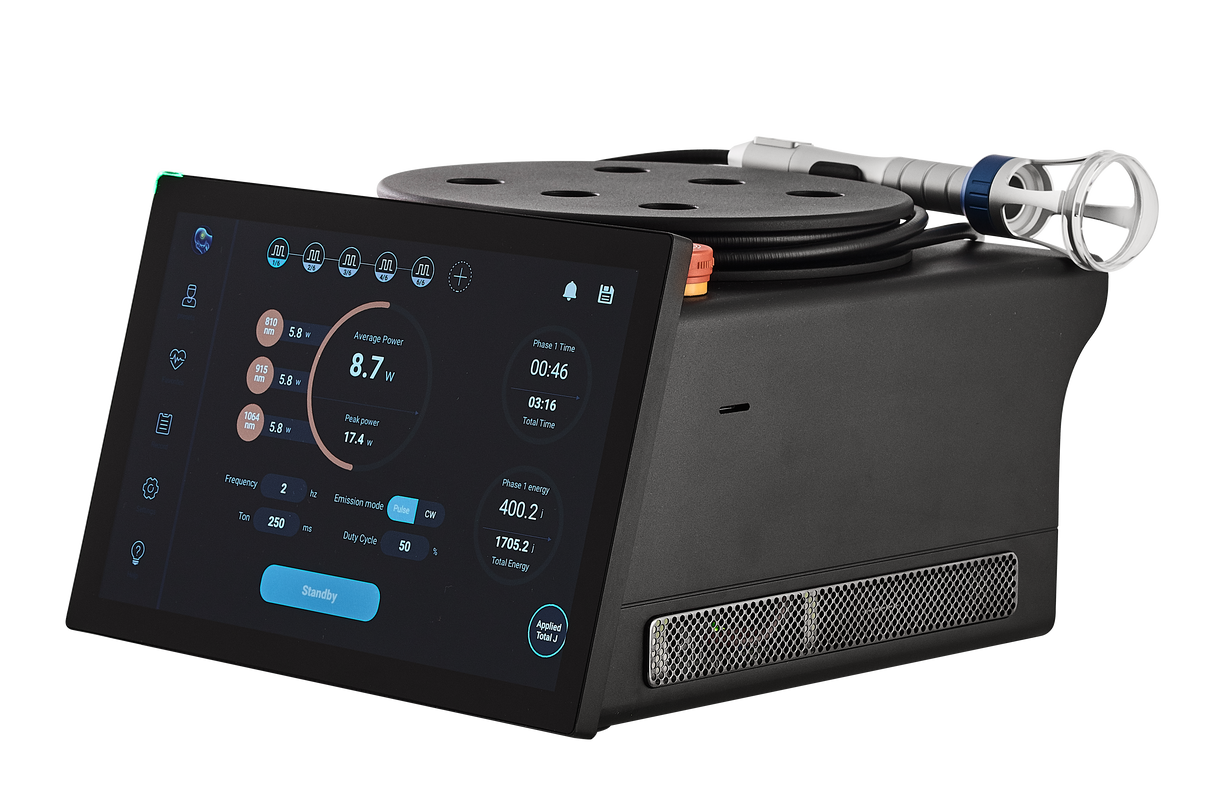

REMY FX ELITE 90W QUAD-WAVE CLASS IV THERAPY LASER SYSTEM

THE PINNACLE OF THERAPEUTIC LASER TECHNOLOGY

The REMY FX Elite 90W QUAD represents the ultimate evolution in Class IV laser therapy, delivering an unprecedented 90 watts of total power through four synergistic wavelengths in one revolutionary system. This FDA 510(k) cleared powerhouse combines cutting-edge technology with unmatched versatility, providing practitioners with the most comprehensive treatment capabilities available today.

While competitors charge $60,000-$80,000 for inferior specifications, our factory-direct model eliminates distributor markups, delivering elite performance at 50% less cost. With true 60W continuous wave output and the ability to utilize all four gold-standard wavelengths simultaneously or independently, the REMY FX Elite 90W transforms practices through superior clinical outcomes and rapid ROI.

---

UNMATCHED POWER SPECIFICATIONS

TRUE POWER OUTPUT

• Total System Power: 90W (highest in class)
• Continuous Wave Output: 60W CW (true measured output)
• Peak Pulsed Power: Up to 90W in super-pulsed mode
• Energy Delivery: Up to 3,600 Joules per minute
• Power Distribution: 30W each @ 810nm, 980nm, 1064nm + 300mW @ 650nm
• Adjustable Range: 200mW to 60W in 0.5W increments

ADVANCED DELIVERY MODES

• Continuous Wave (CW): 0-60W with infinite adjustability
• Pulsed Frequencies: 0.2 Hz to 50 kHz
• Sweep Functions: 12 programmable frequency sweeps
• Duty Cycle: 10-100% in 10% increments
• Pulse Duration: 10μs to 1 second
• Treatment Timer: 0-60 minutes with alerts

---

QUAD-WAVELENGTH SYNERGY: MAXIMUM THERAPEUTIC IMPACT

The REMY FX Elite 90W harnesses four distinct therapeutic wavelengths, each precisely calibrated to target specific tissue depths and cellular responses. This multi-wavelength approach creates unprecedented synergistic effects, dramatically enhancing clinical outcomes.

650nm RED WAVELENGTH

Power Output: 300mW (adjustable 5mW-300mW)
Penetration Depth: 1-2 inches (2.5-5 cm)
Peak Absorption: Melanin, hemoglobin, superficial tissues
Treatment Area Coverage: 15-30mm adjustable spot size

The 650nm red wavelength serves as your premier anti-inflammatory agent, excelling at:

• Accelerating wound healing and reducing scar tissue formation through enhanced fibroblast activity
• Delivering powerful anti-bacterial, anti-viral, and anti-herpetic properties
• Stimulating collagen and elastin production for skin rejuvenation
• Facilitating neurological applications and meridian/acupoint therapy
• Treating dermatological conditions including acne, eczema, psoriasis, and herpes outbreaks
• Enhancing lymphatic drainage and reducing superficial edema
• Supporting hair growth through follicle stimulation

810nm NEAR-INFRARED WAVELENGTH

Power Output: 30W (33% of total infrared output)
Penetration Depth: 2-3 inches (5-8 cm)
Peak Absorption: Cytochrome c oxidase in mitochondria
Power Density: Up to 8.5 W/cm² at 15mm spot size

The 810nm wavelength represents the gold standard for photobiomodulation (PBM), specifically targeting:

• Maximum ATP production increase (150-200% enhancement) through cytochrome c oxidase activation
• Superior cellular oxygenation via improved hemoglobin-oxygen binding
• Enhanced stem cell activation, proliferation, and differentiation
• Optimal penetration-to-absorption ratio for deep tissue healing
• Accelerated nerve regeneration and reduced neuropathic pain
• Improved cerebral blood flow and cognitive function support
• Facilitated calcium ion distribution for enhanced cellular function

980nm INFRARED WAVELENGTH

Power Output: 30W (33% of total infrared output)
Penetration Depth: 3-4 inches (8-10 cm)
Peak Absorption: Water molecules for controlled thermal effects
Power Density: Up to 8.5 W/cm² at 15mm spot size

As the workhorse wavelength for rapid pain relief, 980nm delivers:

• Immediate analgesic effects through thermal receptor modulation
• Enhanced local blood circulation (300% increase in microcirculation)
• Deep muscle relaxation and spasm reduction
• Increased endorphin and serotonin release
• Superior lymphatic drainage and edema reduction
• Effective treatment of trigger points and myofascial pain
• Rapid anti-inflammatory cascade activation

1064nm DEEP INFRARED WAVELENGTH

Power Output: 30W (33% of total infrared output)
Penetration Depth: 4-6 inches (10-15 cm)
Peak Absorption: Minimal tissue absorption, maximum penetration
Power Density: Up to 8.5 W/cm² at 15mm spot size

The 1064nm wavelength achieves the deepest tissue penetration:

• Direct stimulation of bone metabolism and periosteal activity
• Enhanced collagen synthesis in deep joints and spinal structures
• Minimal melanin absorption - safe for all Fitzpatrick skin types (I-VI)
• Reduced photon scatter for focused energy delivery
• Improved metabolic activity in deep muscle and connective tissue
• Upregulation of cerebral oxygen metabolism
• Effective treatment of deep-seated chronic conditions

---

REVOLUTIONARY INTERFACE & SOFTWARE

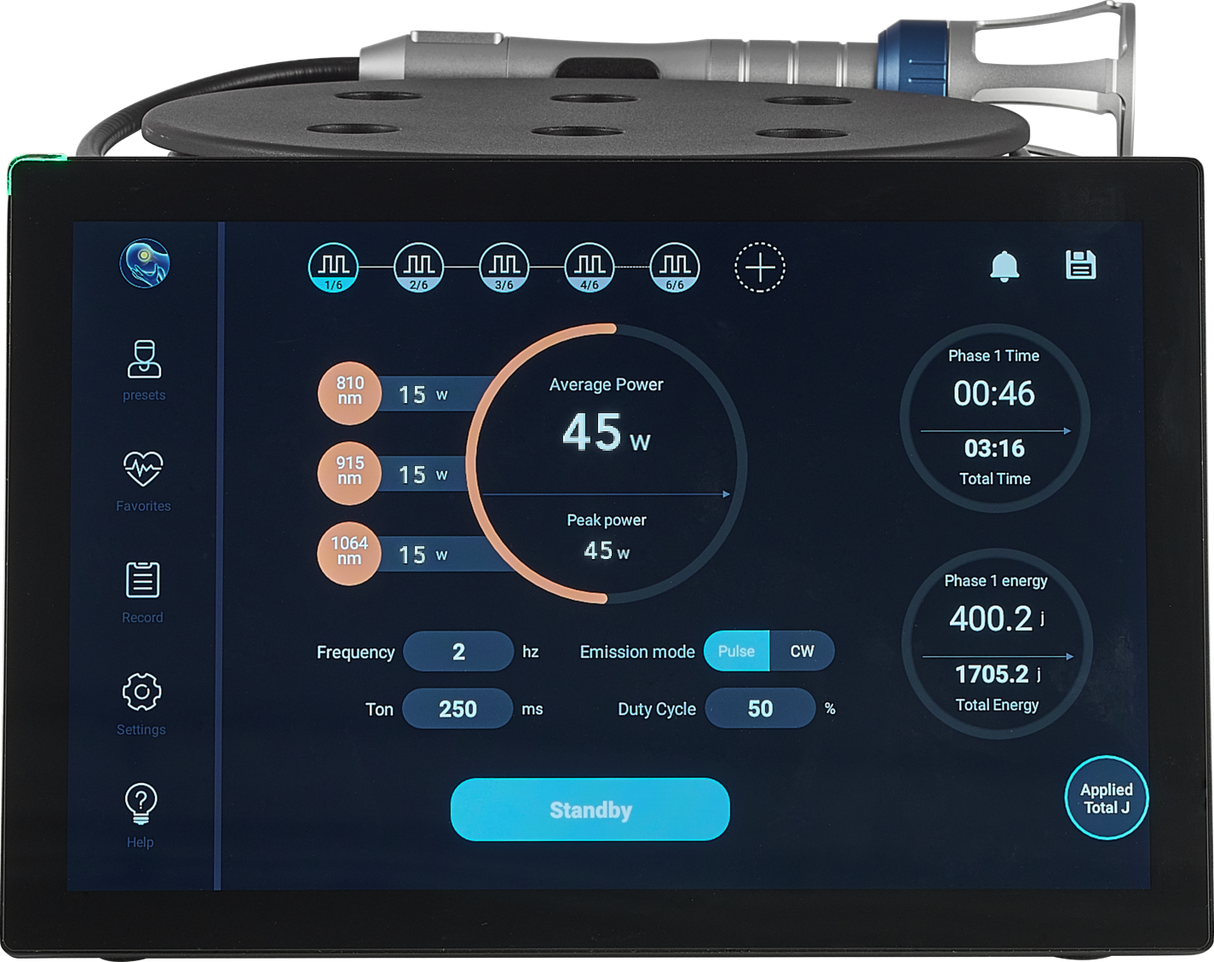

11" TOUCHSCREEN COMMAND CENTER

• Display: 11" capacitive multi-touch LCD (1024 x 600 resolution)
• Interface: iPad-like intuitive graphic interface
• Response Time: <50ms for instant parameter adjustments
• Viewing Angle: 178° for treatment visibility from any position

CLOUD-BASED INTELLIGENCE

• Operating System: Android 10 with WiFi connectivity
• Updates: Automatic OTA protocol and software updates
• Storage: Cloud-based treatment data backup
• Analytics: Treatment outcome tracking and reporting

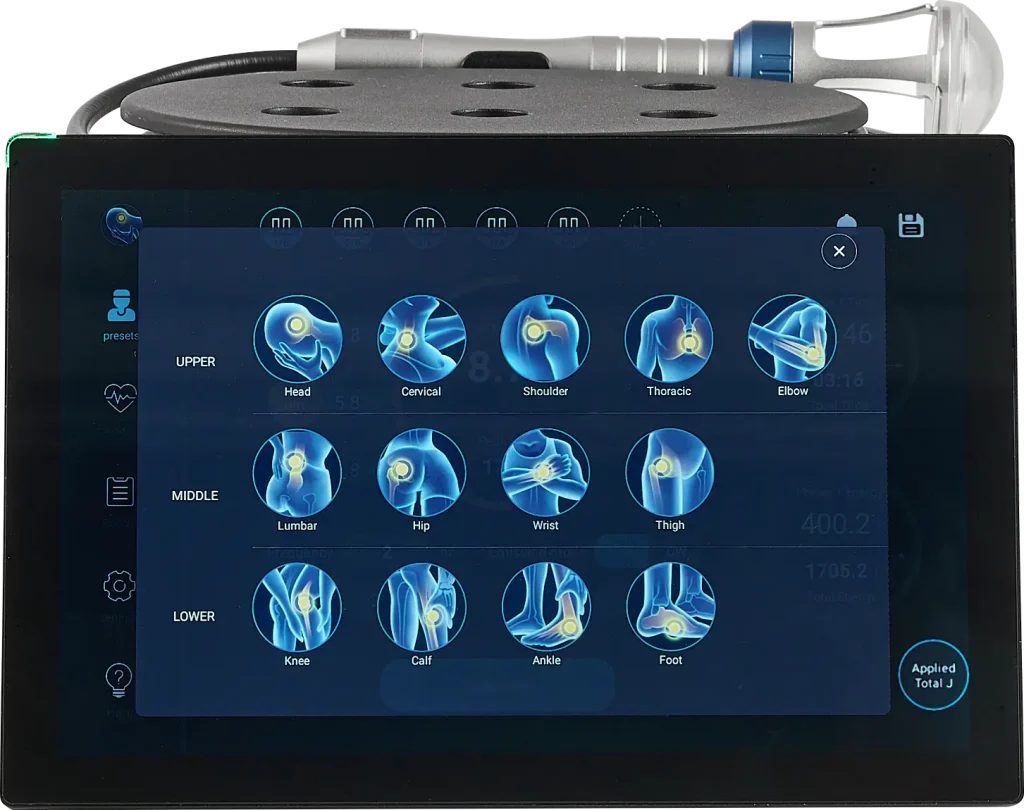

DUAL-INTERFACE SYSTEM

• Human Protocols: 100+ condition-specific treatments
• Veterinary Protocols: Complete animal treatment library
• Custom Protocols: Unlimited storage capacity
• Quick Access: Favorite protocol shortcuts

PATIENT MANAGEMENT SYSTEM

• Electronic patient records
• Treatment history tracking
• Progress photos capability
• Outcome assessment tools
• HIPAA-compliant data storage

---

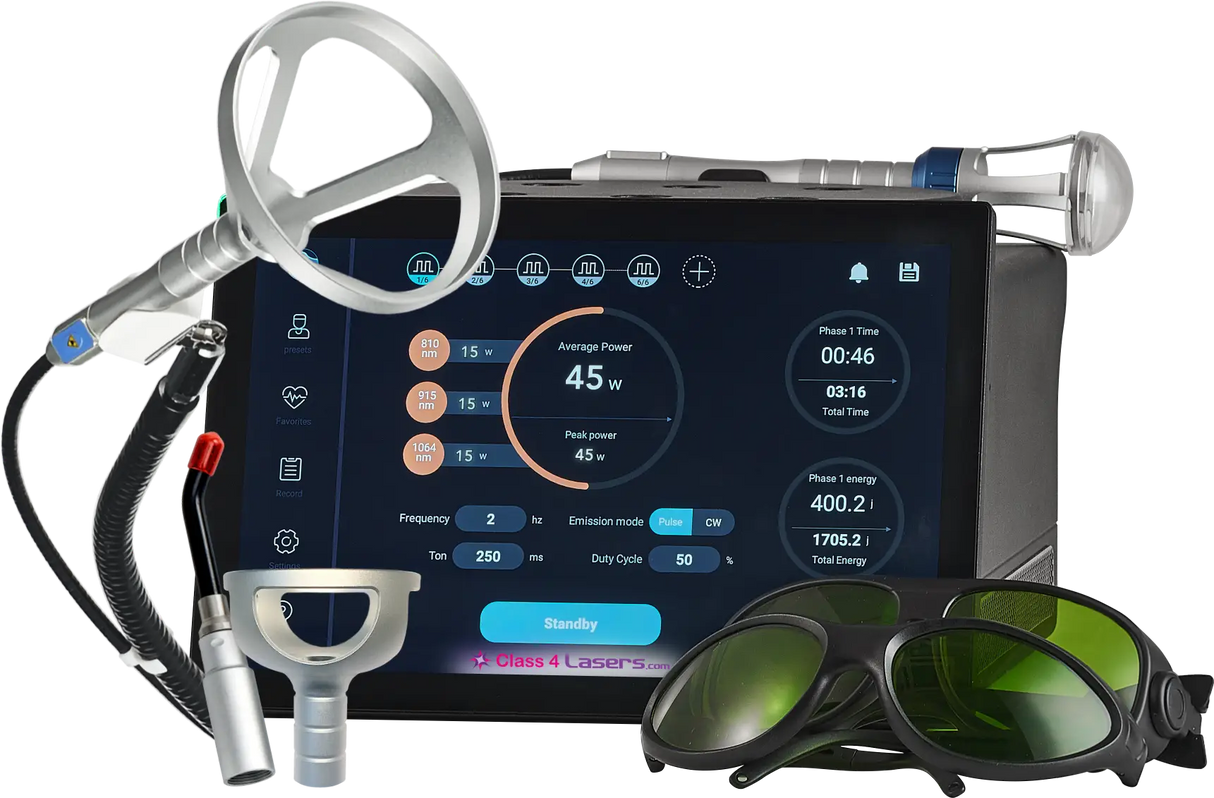

COMPREHENSIVE HANDPIECE ARSENAL

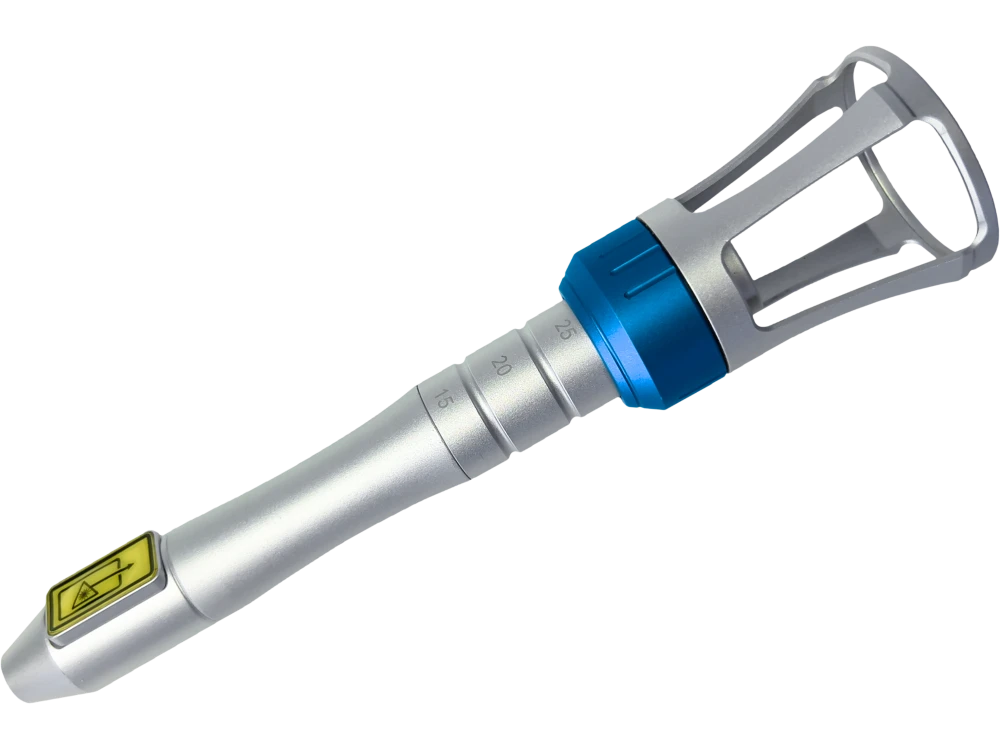

ZOOM TREATMENT HANDPIECE (Primary Handpiece)

Engineering excellence with maximum versatility:

• Spot Sizes: 15mm, 20mm, 25mm, 30mm (twist-adjust)
• Power Density Range: 0.5 - 17 W/cm²
• Construction: Aircraft-grade aluminum with titanium components
• Controls: Integrated start/stop trigger with safety lock
• Cable: 10-foot reinforced 600-micron fiber optic
• Optics: Multi-coated glass lens system
• Cooling: Integrated heat dissipation design

MULTI-ROLLER HANDPIECE ($800 Value - EXCLUSIVE!)

Revolutionary 8-ball roller design for enhanced efficiency:

• Configuration: 8 surgical-grade steel spheres in octagonal array
• Coverage Area: 40mm x 40mm continuous treatment zone
• 360° Contact: Ensures no missed areas during treatment
• Speed Advantage: 50% faster treatment times
• Applications: Joints, spine, curved anatomical surfaces
• Special Feature: Enhanced photon scattering for deeper penetration

40mm DEEP TISSUE HANDPIECE ($300 Value)

Maximum coverage for large treatment areas:

• Spot Size: 40mm fixed diameter
• Power Density: Up to 4.8 W/cm² at full power
• Open-Cage Design: Allows tissue manipulation during treatment
• Cooling: Enhanced airflow prevents tissue heating
• Applications: Large muscle groups, back, glutes, shoulders
• Pressure Capability: Reinforced for deep tissue work

7mm PRECISION HANDPIECE ($300 Value)

Concentrated power for targeted therapy:

• Spot Size: 7mm fixed diameter
• Power Density: Up to 155 W/cm² for rapid results
• Applications: Trigger points, acupoints, ENT, dental
• Construction: Medical-grade stainless steel
• Safety Features: Automatic power limitation for sensitive areas
• Precision Tip: Allows exact point targeting

SPECIALTY HANDPIECES (Based on scope of practice)

• 3.5mm Ultra-Precision: For auricular therapy and fine acupoints
• Surgical Handpiece: For ablation and minor procedures
• Fungus Treatment Tip: Optimized for onychomycosis

---

YOUR $6,000 SUCCESS ACCELERATOR PACKAGE

1. ELITE PRACTITIONER TRAINING ($2,000 Value)

Personalized Mastery Program with Dr. Prensky (30-Year Expert)

• Comprehensive 8-hour initial training (virtual or in-person)
• Certification for up to 6 staff members
• Advanced technique workshops quarterly
• 24/7 online training portal access
• CME/CE credits provided
• Ongoing clinical support hotline

Training Curriculum Includes:

• Laser physics and photobiomodulation science
• Safety protocols and contraindications
• Condition-specific treatment protocols
• Advanced combination techniques
• Patient consultation strategies
• Maximizing clinical outcomes

2. MARKETING DOMINATION KIT ($1,000 Value)

Complete Practice Growth System

Digital Marketing Arsenal:

• Professional website content (SEO-optimized)
• 75+ social media posts with custom graphics
• 12-month email campaign series
• Google Ad templates with proven ROI
• Facebook/Instagram ad creative suite
• YouTube video scripts

Print Marketing Materials:

• 500 premium tri-fold brochures
• Set of 3 waiting room posters (24"x36")
• Illuminated counter display
• Treatment benefit cards (1000)
• Referral program materials
• Window clings and decals

Patient Education Suite:

• 30 condition-specific handouts
• Customizable consent forms
• Treatment tracking journals
• Home care instructions
• FAQ sheets for staff
• Success story templates

3. PROFESSIONAL CART SYSTEM ($1,200 Value)

Medical-Grade Mobile Treatment Station

• Heavy-duty steel construction
• Adjustable height (32"-42")
• Hospital-grade locking casters
• Cable management system
• Three storage shelves
• Accessory drawer
• Handpiece holster array
• Anti-tip certification

4. BONUS PROTOCOL LIBRARY ($100 Value)

500+ Advanced Treatment Protocols

• "22 AcuPoint Healing System" eBook
• "AcuPoint Laser Treatment Guide 3.0"
• Sports injury protocols
• Aesthetic treatment guides
• Veterinary applications
• Research compilation

5. WHITE GLOVE SUPPORT ($1,700 Value)

• Free insured shipping ($300)
• Professional setup and calibration
• 5-year manufacturer warranty
• 30-day satisfaction guarantee
• Loaner program if needed
• Direct tech support line
• Annual calibration certificate

---

CLINICAL PROTOCOLS & TREATMENT PARAMETERS

POWER DOSAGE GUIDELINES BY TISSUE DEPTH

Superficial Conditions (0-2cm)

• Wavelengths: 650nm + 810nm
• Power Setting: 0.5-5W
• Energy Density: 4-8 J/cm²
• Treatment Time: 1-3 minutes
• Frequency: Daily for acute

Moderate Depth (2-5cm)

• Wavelengths: 810nm + 980nm
• Power Setting: 10-20W
• Energy Density: 8-15 J/cm²
• Treatment Time: 3-6 minutes
• Frequency: 2-3x weekly

Deep Tissue (5-10cm)

• Wavelengths: 980nm + 1064nm
• Power Setting: 20-40W
• Energy Density: 15-30 J/cm²
• Treatment Time: 5-10 minutes
• Frequency: 2-3x weekly

Bone/Joint Conditions

• Wavelengths: All four simultaneous
• Power Setting: 30-60W
• Energy Density: 20-40 J/cm²
• Treatment Time: 8-15 minutes
• Frequency: 2-3x weekly

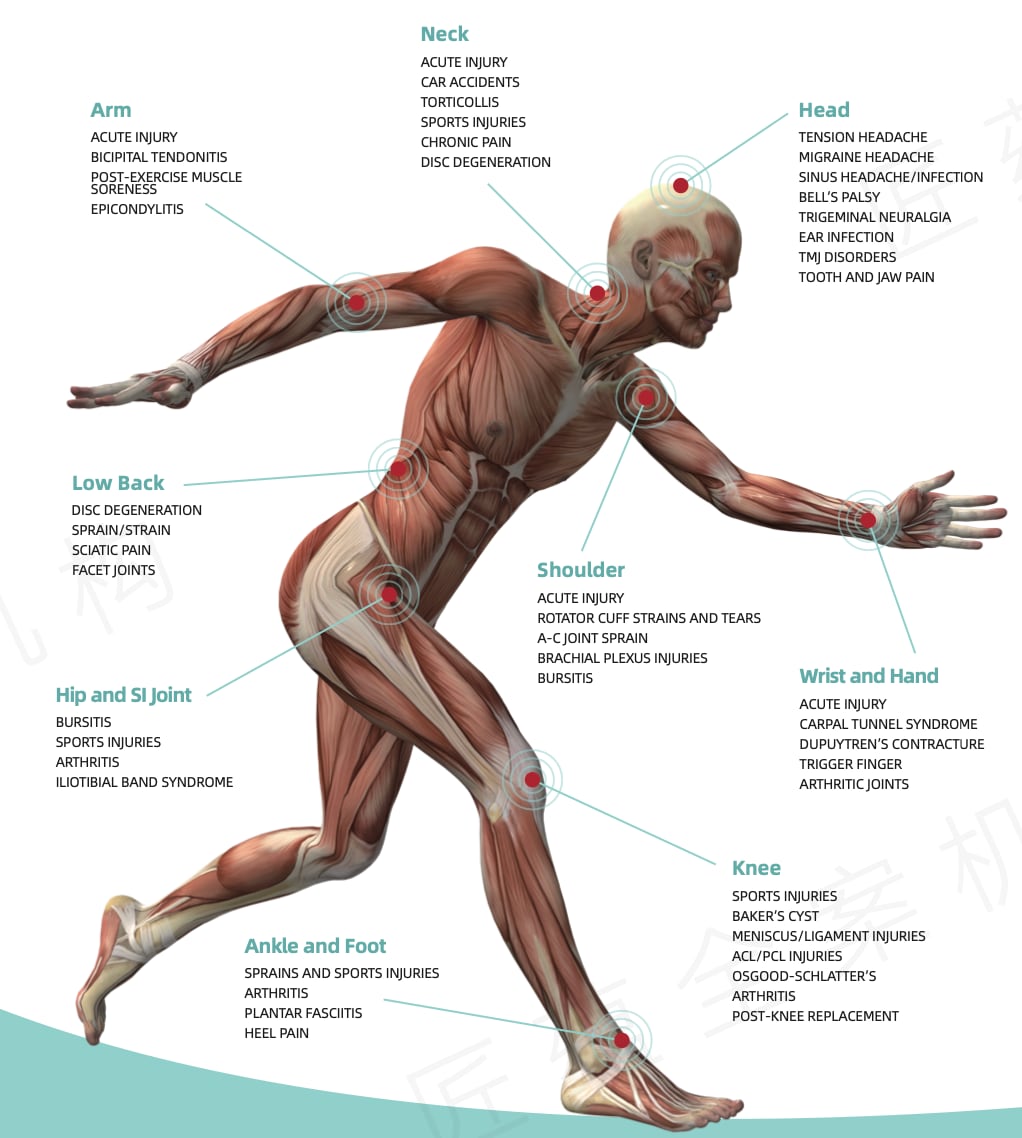

CONDITION-SPECIFIC PROTOCOLS

Acute Injuries (0-72 hours)

• Start low power (20% max)
• Short duration (2-3 min)
• Focus on lymphatic points
• Daily treatment optimal
• Progress power gradually

Chronic Pain Syndromes

• Higher power (60-100%)
• Longer duration (8-12 min)
• Include trigger points
• 2-3x weekly minimum
• Combine wavelengths

Neuropathy Protocols

• Begin with 810nm (nerve regeneration)
• Add 980nm (pain relief)
• Include 1064nm (deep penetration)
• Treat nerve roots
• 10-15 minute sessions

Wound Healing

• 650nm primary (antimicrobial)
• Add 810nm (cellular repair)
• Non-contact technique
• Daily treatments
• Monitor progress photos

---

PROVEN ROI & FINANCIAL METRICS

REVENUE GENERATION MODEL

Treatment Pricing Structure:

• Single session: $125-$200
• 6-session package: $600-$1,000
• 12-session package: $1,000-$1,800
• Maintenance plans: $150-$250/month

Monthly Revenue Projections:

• Conservative (8 patients/week): $4,000-$6,400
• Moderate (15 patients/week): $7,500-$12,000
• Aggressive (25 patients/week): $12,500-$20,000

Break-Even Analysis:

• Investment recovery: 3-6 months
• Year 1 ROI: 200-400%
• 5-year revenue potential: $250,000-$500,000

COST ANALYSIS

• Consumables: $0 (none required)
• Electricity: <$25/month
• Maintenance: Annual calibration $300 (optional)
• Per-treatment cost: $0
• Insurance: Covered under equipment policy

INSURANCE REIMBURSEMENT

• CPT Codes: 97026, 97032, S8948
• Average reimbursement: $45-$95 per session
• Medicare: Non-covered (cash opportunity)
• Private insurance: Increasing coverage
• HSA/FSA: Fully eligible

---

COMPETITIVE DOMINATION

Feature	REMY FX Elite 90W	Summus Horizon	LightForce XLi	Aspen Apex
Total Power	90W	45W	40W	60W
CW Power	60W	30W	25W	30W
Wavelengths	4 (Quad)	4	2	3
Price	$24,995	$70,000+	$65,000+	$55,000+
Warranty	5 years	2 years	2 years	1 year
Training	Included (6 staff)	Limited	Extra cost	Extra cost
Marketing	$6K package	None	Basic	None
Handpieces	5 included	2 included	2 included	3 included
Cart	Included	$2,500 extra	$2,000 extra	$1,500 extra
Success Package	$6,000 value	None	None	None

---

TECHNICAL EXCELLENCE

BUILD QUALITY

• Diode Rating: Premium 90W diodes
• Operating Efficiency: 67% (maximum longevity)
• Expected Lifespan: 50,000+ hours
• Quality Standards: ISO 13485, FDA 510(k)
• Testing: 48-hour burn-in protocol
• Warranty: 5 years parts/labor

SAFETY CERTIFICATIONS

• FDA 510(k) cleared
• IEC 60825-1 compliant
• CE marked
• ETL/UL listed
• OSHA compliant
• State regulatory approved

PHYSICAL SPECIFICATIONS

• Dimensions: 9.5"W x 11"L x 6.25"H
• Weight: 10 lbs (highly portable)
• Power Requirements: 100-240V, 50/60Hz
• Operating Environment: 50-104°F, 30-75% humidity
• Cooling: Whisper-quiet forced air
• Transport: Shock-proof carrying case included

---

PRACTICE TRANSFORMATION TESTIMONIALS

"In my 42 years of practice, the REMY FX 90W is the single best investment I've made. The clinical results are amazing, and the financial benefits have exceeded all expectations. I'm treating conditions I couldn't touch before."
- Dr. Gary Cebek, DC | Murrysville, PA

"The 90W power combined with four wavelengths gives me treatment options no other laser can match. I reduced a patient's chronic lumbar pain by 90% in just three sessions. This laser pays for itself every month."
- Dr. Tony Paolucci, DC | Parker, CO

"After researching every major brand, the REMY FX Elite 90W was the clear winner. More power, more features, better support, and half the price. My ROI was complete in 4 months."
- Dr. Sarah Chen, PT, DPT | San Diego, CA

---

LIMITED-TIME OPPORTUNITY

SPECIAL PRICING THIS MONTH ONLY

Regular Price: $29,995
YOUR PRICE: $24,995
YOU SAVE: $5,000 INSTANTLY

PLUS: $6,000 Success Accelerator Package FREE

EXCLUSIVE BONUSES

• 0% financing for 24 months (qualified buyers)
• First 6 months: $0 payment
• Months 7-12: Only $99/month
• No prepayment penalties
• Section 179 tax benefits up to 35%

FLEXIBLE PAYMENT OPTIONS

• Lease-to-own programs
• 90-day same as cash
• Trade-in program available
• Multi-unit discounts

---

TAKE ACTION NOW

The REMY FX Elite 90W represents a paradigm shift in therapeutic laser technology. With unmatched power, four proven wavelengths, and comprehensive support, you'll deliver results that build your reputation and grow your practice exponentially.

Immediate Action Steps:

1. Schedule your personalized demo
2. Review ROI projections for your practice
3. Discuss payment options
4. Reserve your unit (limited availability)

---

REMY FX ELITE 90W QUAD
Where Maximum Power Meets Proven Results

More Power. More Wavelengths. More Profit.
The Undisputed Champion of Class IV Laser Therapy
